On this page

Administer

Note: the Administer part of Flow is restricted to administrators.

Teams

Create and manage your teams. It provides an overview table for a high level snapshot of all Teams. You can then deep dive into each Team, its Users, its Workflows, and associated Settings.

Users

View your Users and manage their role. It provides an overview table for a high level snapshot of all Users. You can deep dive into each User to view their Workflows, Teams, associated Settings and change their role.

Global Parameters

Global parameters are one of the scopes of the parameter layering available. The Global Parameter administration screen allows you to create, edit, and delete Global parameters. For more information, see Getting to Know Parameters.

Global Tokens

Global Tokens is where you can create and remove global scoped API tokens that allow you to perform actions against the API endpoints on behalf of the whole platform.

To understand more about scopes, see Security Architecture.

To understand more about the APIs, see API Architecture.

Team Quotas

See Getting To Know Quotas for more information.

Settings

The centralized home to configuring everything. You can control everything from feature flags and extensions through to user and team defaults, and how the Tasks perform.

Features

This is the feature flags that are available in the system and allow you to retain control and personalize the experience for the users by enabling or disabling functionality. By default, all features are enabled.

Feature Description
Activity The ability to interact with Workflow Activity
Insights The ability to interact with the Insights functionality
Workflow Quotas Whether to enforce quotas on Workflows
Workflow Triggers Whether to display Triggers section on the Workflows Configuration page
Workflow Tokens Whether to display Tokens section on the Workflows Configuration page
Team Parameters Allow access to, and create, Team Parameters
Global Parameters Allow access to, and create, Global Parameters
Team Management Allow management and editing of teams. If disabled, the Teams page will still be visible but in read only mode
User Management Allow management and editing of users. If disabled, the Users page will still be visible but in read only mode
Team Tasks Allow the creation and management of Team tasks

Extensions

You can enter information as to how Extensions work

Setting Description
Slack Auth Token The default auth token for authenticating as a Slack app. Only used if installing into a single workspace and not a distributed app.
Slack App ID The App ID from your Slack apps credentials
Slack Client ID The Client ID from your Slack apps credentials
Slack Client Secret The Client Secret from your Slack apps credentials

Task Configuration

Ability to modify the underlying task execution configuration.

Config Description
Debug Will enable debug information in the log of executing Tasks
Default Image Path If a Task doesn't define the image it will default to what is defined here
Deletion Policy Defines the completion state that will lead to worker removal. Options are: never, on success, and always.
Enable Verified Tasks to be Edited By default, the Tasks that are shipped with Flow are considered 'verfied' and are not editable.
Task Timeout Configuration Number of minutes before a Task times out.

Team Defaults

Default quotas to apply to all Teams or to restore to when managing a Teams quotas.

User Defaults

Default quotas to apply to all Users.

Workspace Configuration - Activity Storage

Define how the system utilizes and interacts with storage per execution

You can set the default Storage Size, Class Name, Access Mode (Read Write Once, Read Write Many, and Read Only Many), and Maximum Storage Size

Workspace Configuration - Workflow Storage

Define how the system utilizes and interacts with storage per Workflow and persisted across executions.

You can set the default Storage Size, Class Name, Access Mode (Read Write Once, Read Write Many, and Read Only Many), and Maximum Storage Size

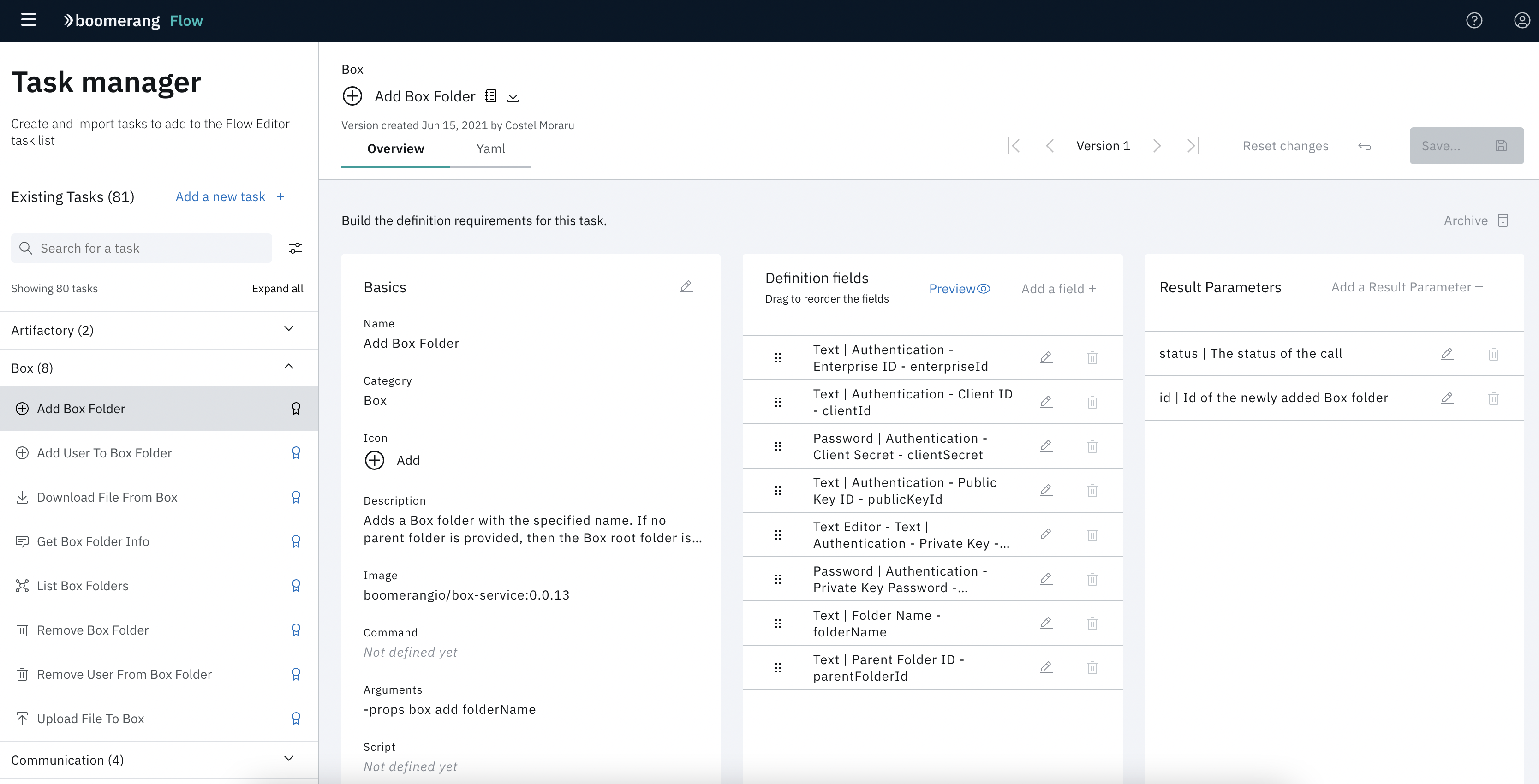

Task Manager

The Task Manager displays and allows you to manage all currently defined tasks, except for System Tasks.

Task Manager Panel

Viewing tasks

The left panel displays the currently defined tasks by category. Expand each category to view its related tasks.

Task header

The top of each task definition presents task version control. The name of the task, along with the date the task was last updated is displayed.

The Version control in the task header allows you to cycle through past versions of the task. When viewing the current version, Reset changes can be used to reset any editing you have done. When viewing a previous version, the parameters from that version can be copied into a new version using Copy to new version.

It also allows you to switch from Overview to YAML view. The YAML view supports the Tekton Task definition.

Task definition

Task definition is split into: Basics, Definition fields, and Result Parameters

Basics

The following fields are defined as Basics.

Field Description
Name The identifier for task, used throughout the platform.
Category The group in the left task panel that is identified with the task.
Icon The icon associated with that task, used throughout the platform.
Description A short narrative of the task.
Image The container image to use
Command The command to run when starting the container
Arguments The list of values passed into the task parameters.
Script The body of a script to run. If the script field is present, the task cannot also contain a command field.
Working Directory The directory inside the container to execute inside of
Envs Environment key values to define and pass through to the container
Contribution level Verified or Community

Definition fields

Definition fields vary according to the task. See Parameters. The displayed fields can be dragged and dropped to change their order.

Note: Click Preview in the top right corner of the page to view what the user sees for that task, when editing a task on the platform.

Result Parameters

Define the result parameters we should expect on completion of the Task. These are defined in advanced so Users know what variables they can utilize in following Tasks.

Editing tasks

To edit a task, simply edit any of the parameters in the Basics and Definition fields and click Save in the top right corner of the page.

Note: Verified tasks are not editable, unless the platform Administrator has enabled editing in the Global settings.

Adding a task

Click Add a new task at the top of the left panel. A dialog requesting value for each of the Basics parameters is displayed.

Enter the desired values, then click Create.

Add Task

System Workflows

The System Workflows screen allows you to define and execute System Workflows that do not abide to any Quotas and are essentially considered System wide workflows.

You also administer the Workflow Templates from this screen. Any workflow defined as a Template will appear in the Templates model on the Workflows screen.
